75' Heavy-Duty Aluminum Aerial Ladder

High performance on a single rear axle with a short wheelbase.

Overview

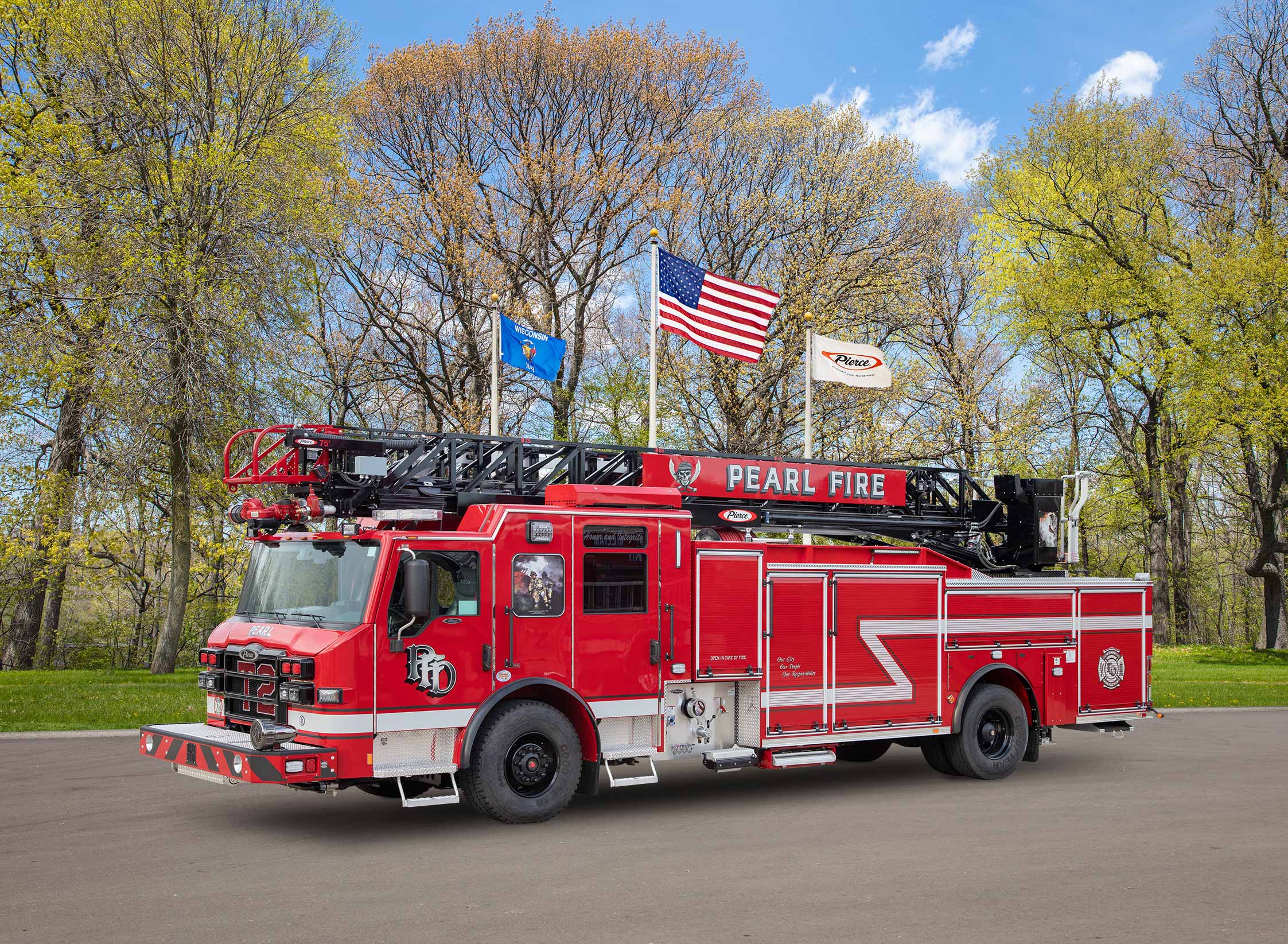

Pierce 75' Heavy-Duty Aluminum Aerial Ladder Fire Truck Extended

The Pierce 75' heavy-duty aluminum aerial ladder is designed with high-strength aluminum extrusions resulting in an extremely durable ladder. Get an impressive 750 lb dry tip load rating capable of flowing up to 1,500 gpm. You can add up to 100 lb of additional firefighting equipment at the tip without reducing the rated load capacity. Besides its impressive tip load rating, the 75' heavy-duty aluminum aerial ladder has a 2.5:1 structural safety factor, a 35 mph wind load rating and can operate with up to .25" of ice buildup.

The ladder features a removable egress, making it easy to repair if it is ever damaged without having to replace the entire fly section. The single set of H-style stabilizers allows for quicker and easier setup. Using a third-party, every Pierce aerial is certified to the stringent UL Type I requirements.

Specifications

Flow Capacity

1,500 gpm

Payload Capacity

Up to 750 lb dry / 500 lb wet

Ladder Reach

75' Vertical / 67'9" Horizontal

Design

Custom Chassis	Enforcer™, Impel®, Velocity®	Rear Axle	Single
Stabilizer Spread	16'	Stabilizers	1 set of H-style
Structural Ladder Warranty	20-yr

Performance

Flow Capacity	1,500 gpm	Hosebed Capacity	1,000' of 5" hose
Ladder Complement	Minimum of 115'	Ladder Reach	75' Vertical / 67'9" Horizontal
Operating Range	-8° to 76°	Payload Capacity	Up to 750 lb dry / 500 lb wet
Pump Range	Waterous, Hale, Darley Midship, PTO	Tank	Up to 500 gallons
Wind or Ice Ratings	Up to 35 mph winds and 1/4" of ice

Proprietary Options

Foam Systems	HERCULES™ CAFS Husky™ 12 Husky™ 3	Pump	PUC™
Suspension	TAK-4® Independent Front Suspension
