Performance on your terms.

IMPEL BROCHURE

Overview

A fire truck designed and built for one department will not be the best configuration for another.

It's why Pierce partnered the Velocity^® chassis with the Impel chassis - to offer an excellent value with a long list of standard features and available options.

Impel 360° Interior Tour

Pierce Impel custom fire truck with black seats and red interior designs looking towards the front windshield.

Visibility & Space

The large single-piece bonded windshield & daylight windows increase visibility; the 3-blade wiper system provides better coverage of the panoramic windshield surface.

At 100" wide, the Impel cab provides ample room to carry up to 10 personnel comfortably or additional compartments & equipment.

The forward roof design offers a cathedral ceiling feel with increased frontal visibility & more configurable space.

Ergonomics

Large exterior door handles are generously sized to fit the firefighter's gloved hands.

Wide cab doors make entry safer & exit quicker for firefighters.

Gauges & switches are within easy reach of the driver without interrupting lines of sight.

Serviceability

1-piece, full width, lift-up hood allows for easy maintenance & fast access to the windshield washer fluid, coolant overflow, power steering, windshield wiper motor & cab lift controls.

Electrical systems, breakers, components & modules are easy to access & service on the officer's side of cab.

In-cab access for chassis fluids makes servicing easier.

Maneuverability

Massive 13.38" 120 psi steel frame rails for superior handling & reduced frame deflection.

Specifications

Engine Horsepower

370 – 450 hp

Cab Dimensions

Length 60", 70" or 84" / Width 100"

Cab Roof Style

Flat or raised (10" or 20")

Design

Cab Dimensions	Length 60", 70" or 84" / Width 100"	Cab Roof Style	Flat or raised (10" or 20")
Doors	Barrier or full height	Electrical System	Command Zone™
Frame Rail	13-3/8"	Front Axle Suspension	Leaf or TAK-4®
Frontal Air Bags	Default	Rear Axle Suspension	Leaf, rubber, air, TAK-4®, or TAK-4 T3™; single or tandem
Seating Capacity	10	Side Roll Protection	Default

Performance

Alternator	270 - 430 amp	Cramp Angle (maximum)	45°
Engine	Cummins X10	Engine Horsepower	370 – 450 hp
Front GAWR (maximum)	23,000 lb	Rear GAWR (maximum)	54,000 lb
Transmission	Allison 3000 EVS

Proprietary Options

Aerial	Snozzle®	Electrical	Command Zone™
Pump	PUC™	Suspension	TAK-4® Independent Front Suspension TAK-4® Independent Rear Suspension

Exterior Gallery

Wide cab doors

Wide cab doors make entry safer and exit quicker and more efficient for firefighters.

Generously door handles

Large exterior door handles are generously sized to fit the firefighter's gloved hands.

Lift & tow front bumper

Lift and tow mounts are placed at a standard location for tow truck life systems.

Pierce's One-Eleven mirrors

Mirrors are positioned to minimize both the body and head movements of the driver and increase visibility around the vehicle.

Forward roof design

The forward roof design offers a cathedral ceiling feel with increased frontal visibility & more configurable space.

Fast access service tilt hood

One-piece, full width, liftup hood allows for easy maintenance & fast access to the windshield washer fluid, coolant overflow, power steering, windshield wiper motor & cab lift controls.

Panoramic windshield

The large, single-piece bonded windshield & daylight windows increase visibility; the 3-blade wiper system provides better coverage of the panoramic windshield surface.

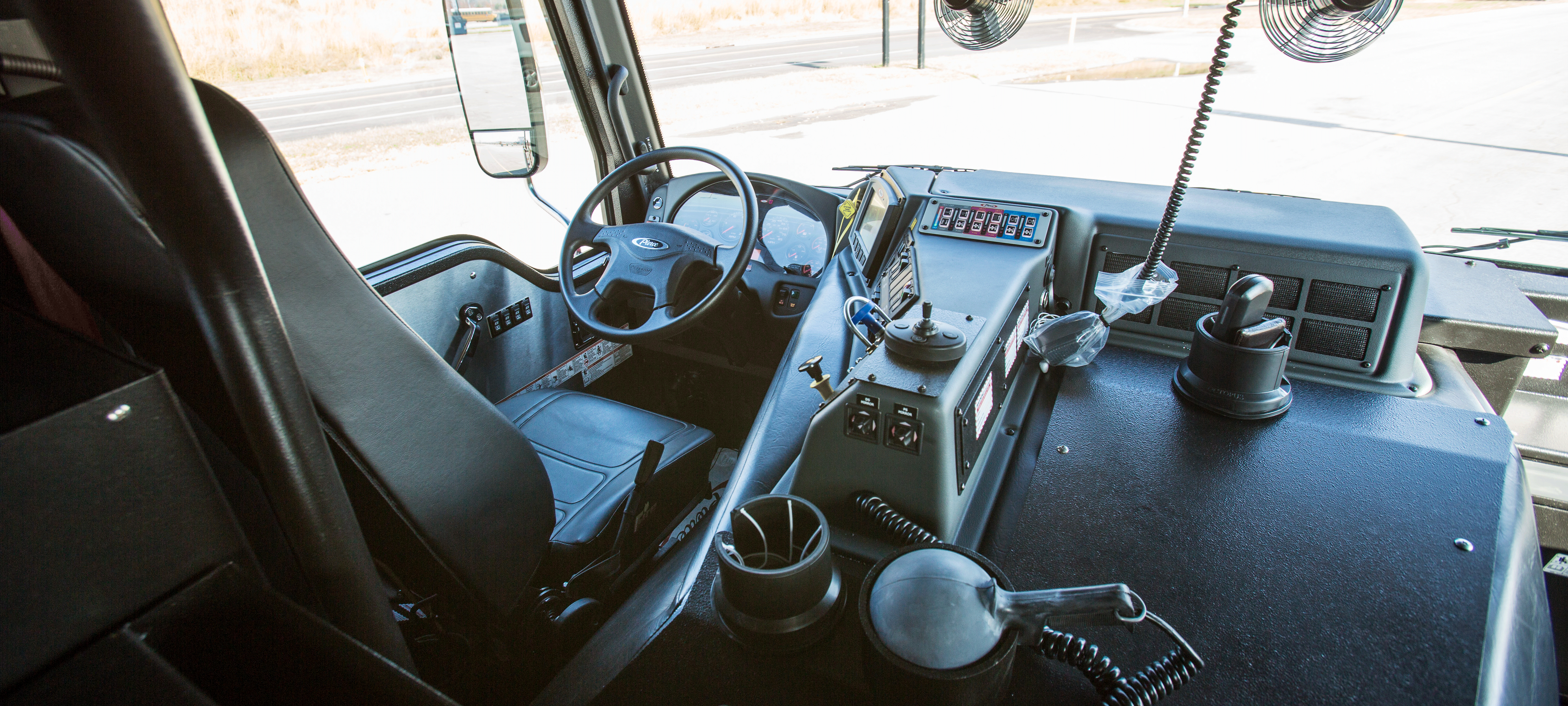

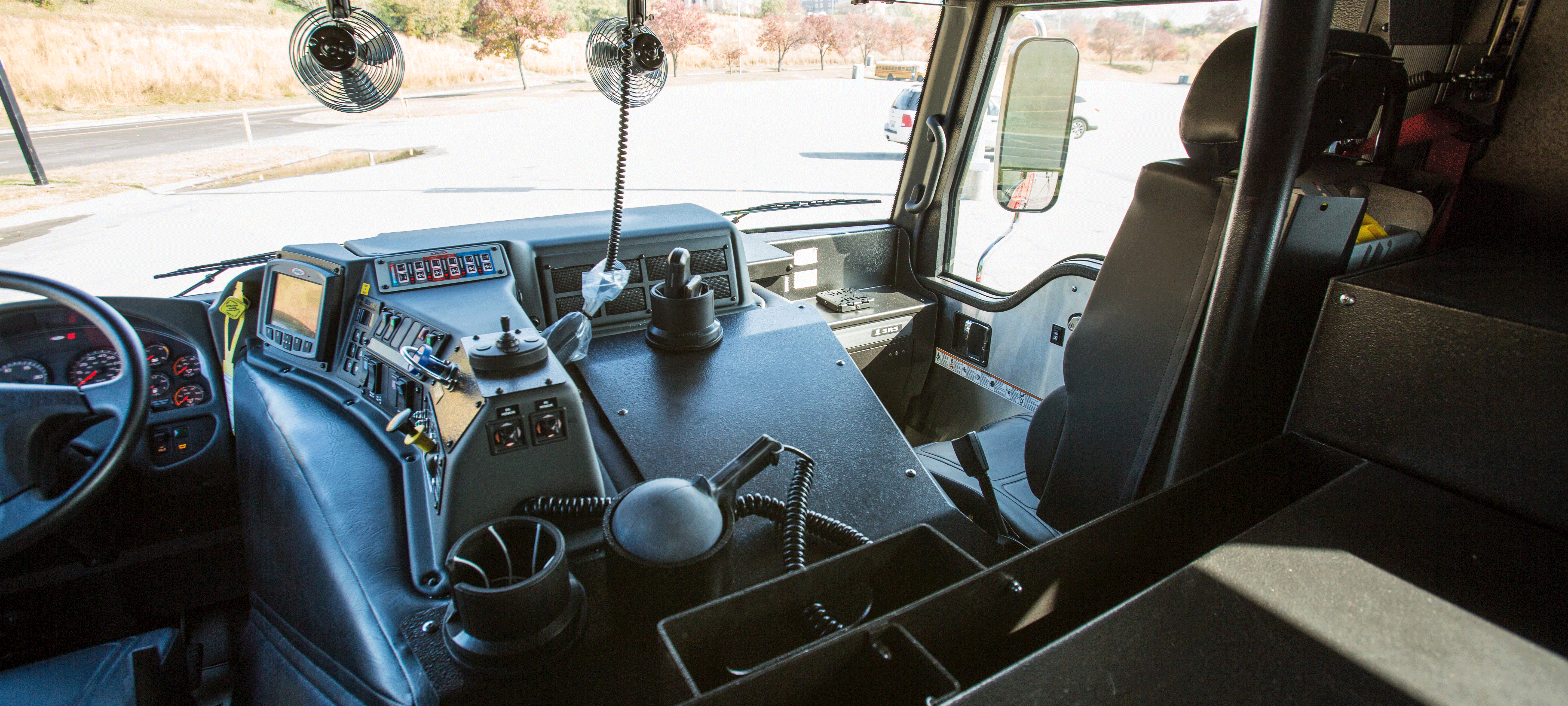

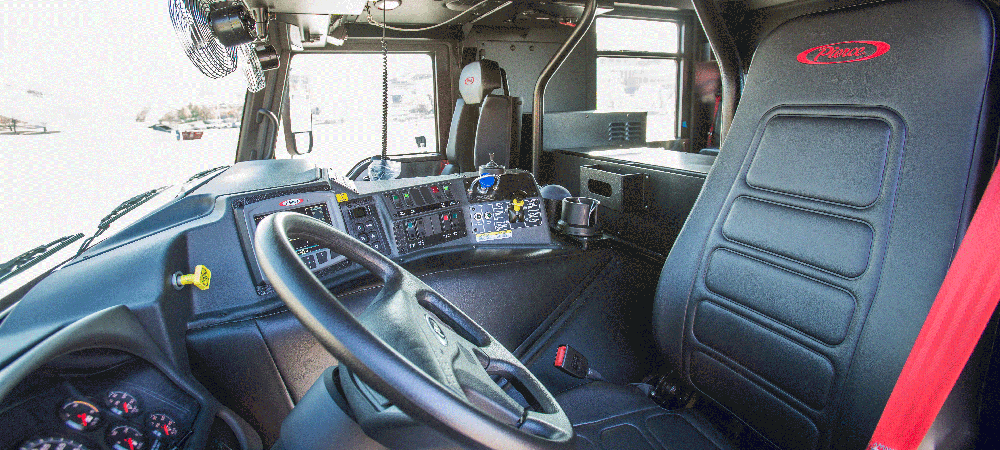

Interior Gallery
