Pierce Enforcer Custom Fire Truck Chassis

The legacy grows.

ENFORCER BROCHURE

Overview

Proven reliability returns. The Pierce Enforcer chassis is more capable than ever. With TAK-4® independent front suspension, your choice of three powerful engines and Pierce's exclusive Command Zone™ multiplexed electrical system, the Enforcer performs like never before.

Plus you can take advantage of significant improvements in visibility, space, ergonomics and serviceability.

Enforcer 360° Interior Tour

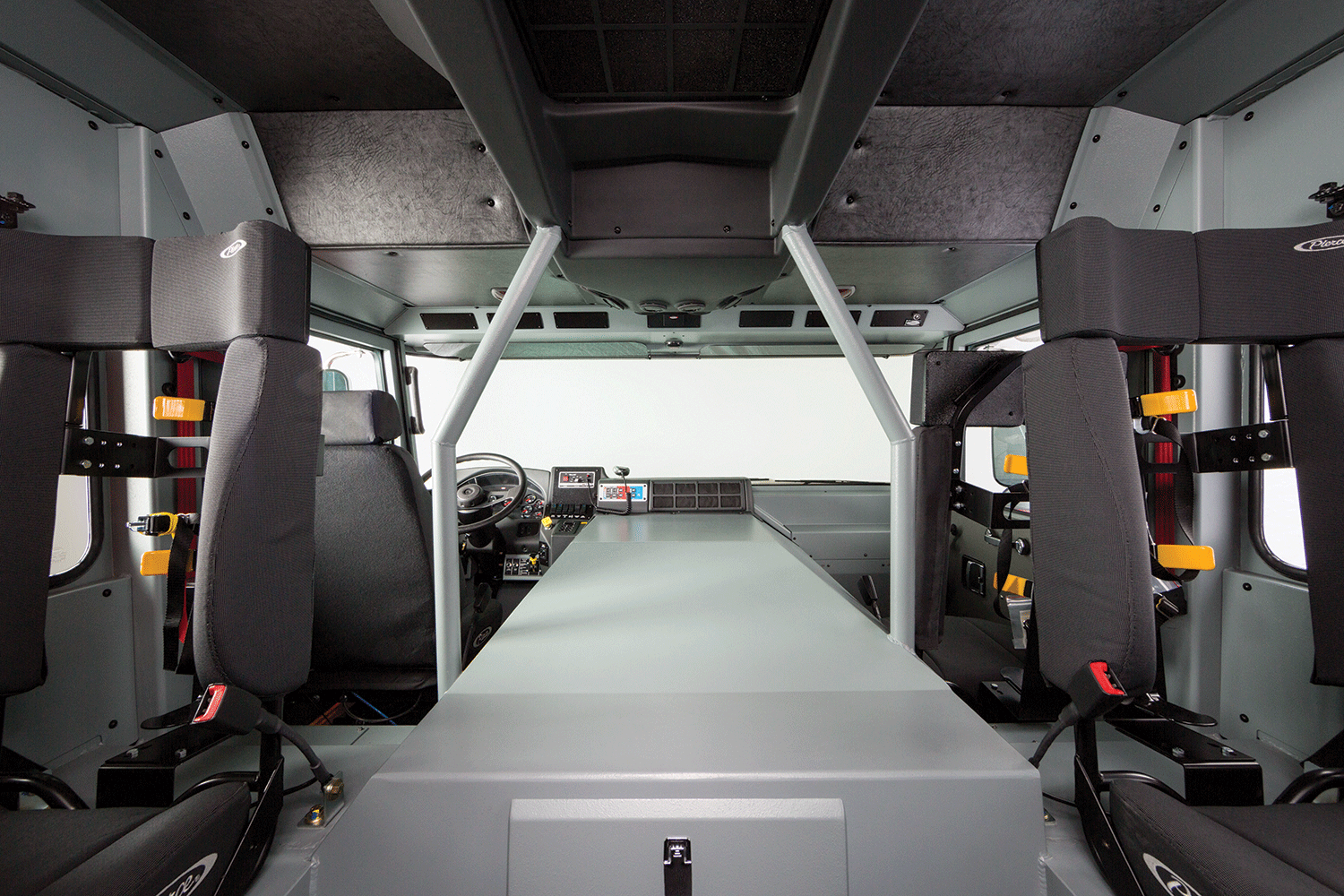

Enforcer Custom Fire Truck Chassis Interior



Visibility & Space

  • Exceptional visibility is achieved through a large, bonded, single-piece, wrap-around windshield.
  • The smaller engine tunnel is lower & more contoured for increased occupant space, particularly up front for the driver & officer.
  • The forward roof design offers a cathedral ceiling feel with increased frontal visibility & more configurable space.

Ergonomics

  • Exterior door handles are functionally designed for a firefighter's gloved hand.
  • The steps are lower to the ground & offset to function like a stair step, making it easier for firefighters to enter & exit the cab.
  • The console & metal overhead switch panel are ergonomically designed for maximum convenience & comfort, keeping all of the gauges & switches within easy reach of the driver.

Serviceablity

  • Easy access to the defroster & wiper motors through removable officer-side panels.
  • Power distribution relocation provides more interior space & fewer harnesses in the frame & up through the cab for easier servicing.
  • Built-in wire raceways throughout the cab reduce the chance of wire chafing & make it easier to service or add cab harnesses & wiring.







Maneuverability

  • Maximum 50-degree cramp angle & 15-degree angle of approach for improved maneuverability in those tight areas & challenging situations.

Specifications

Engine Horsepower

370 - 600 hp

Cab Dimensions

Length 60", 70" or 84" / Width 96"

Cab Roof Style

Flat or raised (10" or 24")

Design

Cab DimensionsLength 60", 70" or 84" / Width 96" Cab Roof StyleFlat or raised (10" or 24")
DoorsBarrier or full height Electrical SystemHard Wired or Command Zone™
Frame Rail13-3/8" standard; 10-1/4" optional Front Axle SuspensionLeaf or TAK-4®
Frontal Air BagsDefault Rear Axle SuspensionLeaf, rubber, air, TAK-4® or TAK-4 T3™; single or tandem
Seating Capacity8 Side Roll ProtectionDefault

Performance

Alternator270 - 430 amp Cramp Angle (maximum)50°
EngineCummins X10, X15 or PACCAR MX Engine Horsepower370 - 600 hp
Front GAWR (maximum)24,000 lb Rear GAWR (maximum)60,000 lb
TransmissionAllison 3000 EVS, 4000 EVS or 4500 EVS

Proprietary Options

Aerial Snozzle®
 Electrical Command Zone™
Pump PUC™
 Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension

Exterior Gallery

Cab tilt

An increased cab tilt angle improves access to the chassis components under the cab.

Oversized door handles

Exterior door handles are functionally designed for a firefighter's gloved hand.

Large front door

Side visibility is improved by a slightly larger front door and a narrower A-pillar.

Forward roof design

The forward roof design offers a cathedral ceiling feel with increased frontal visibility and more configurable space.

Low, offset cab steps

The steps are lower to the ground and offset to function like a stair step, making it easier for firefighters to enter and exit the cab.

Single front windshield

Exceptional visibility is achieved through a large, bonded, single-piece, wrap-around windshield.

Interior Gallery

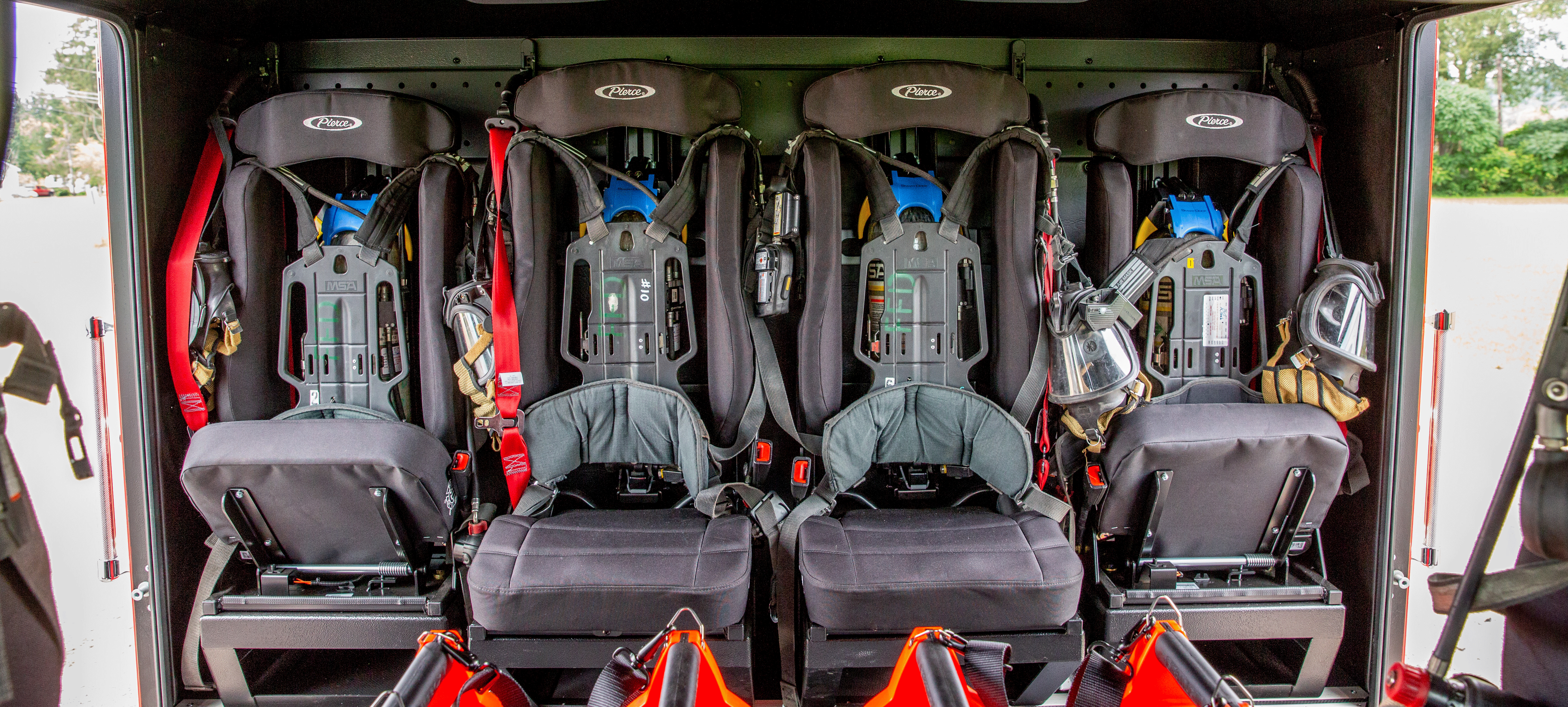

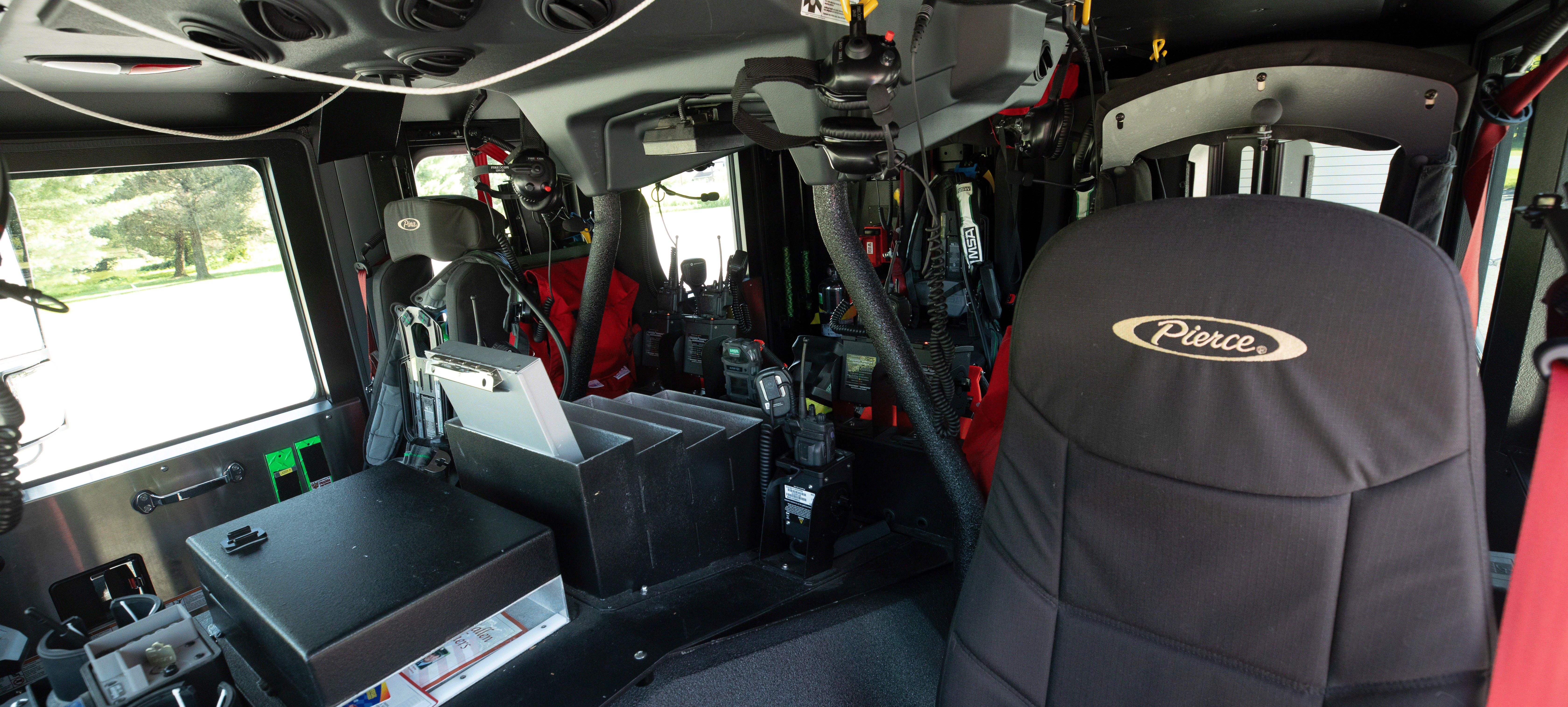

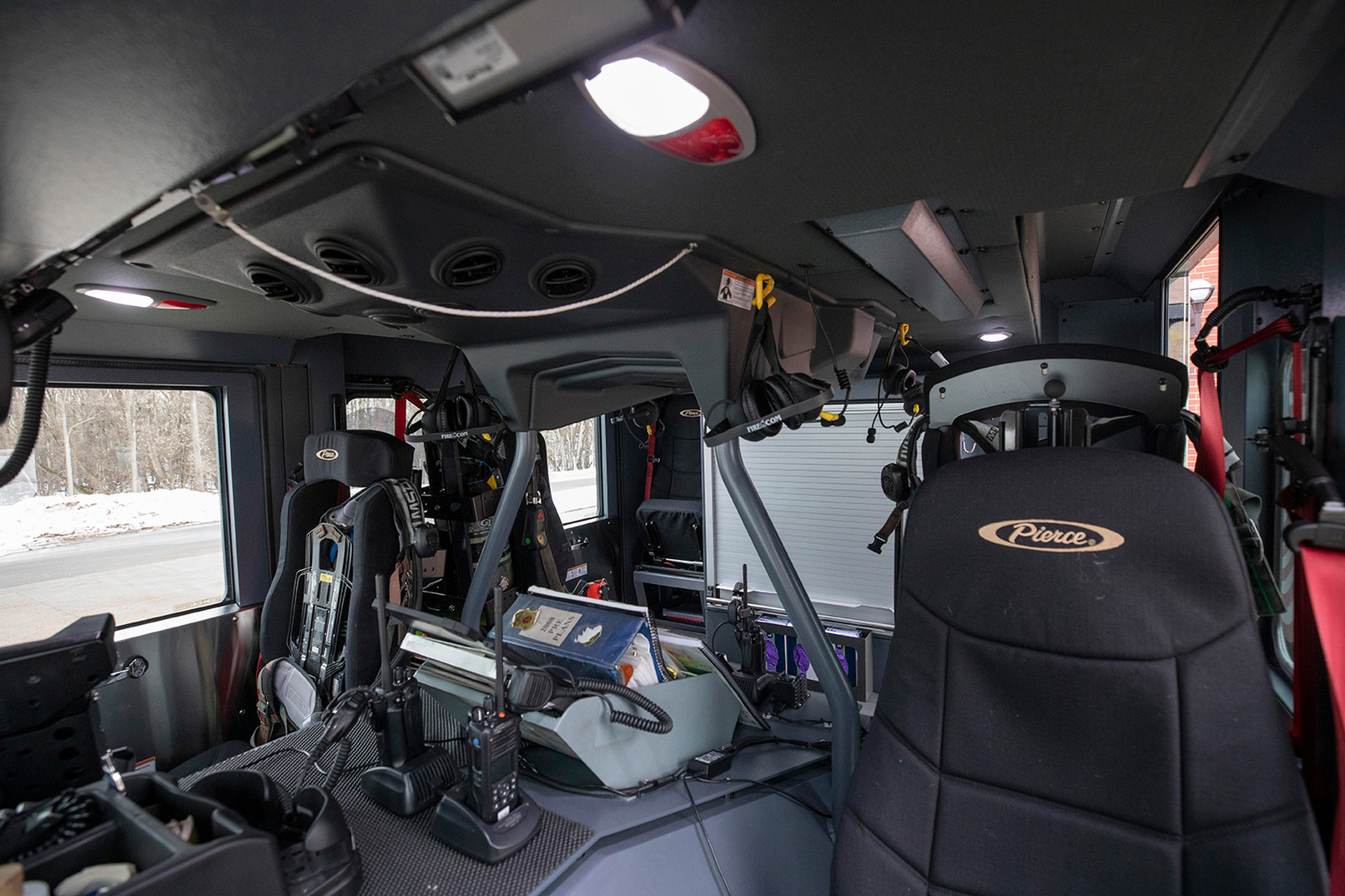

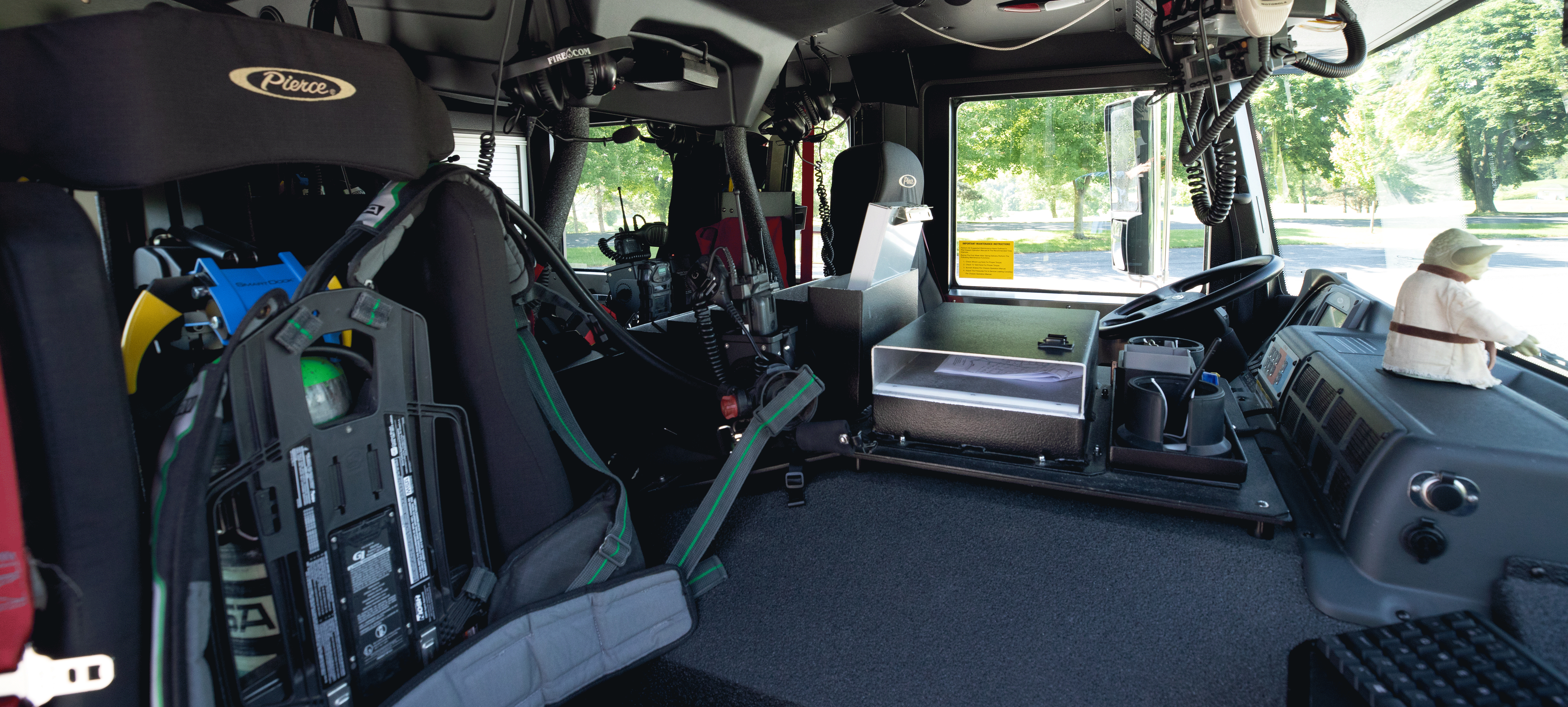

Pierce Enforcer Custom Fire Truck Chassis Cab InteriorPierce Enforcer Custom Fire Truck Chassis Officers Side InteriorPierce Enforcer Custom Fire Truck Chassis Crew Cab Seating ConfigurationInterior Enforcer Custom Chassis
