Overview

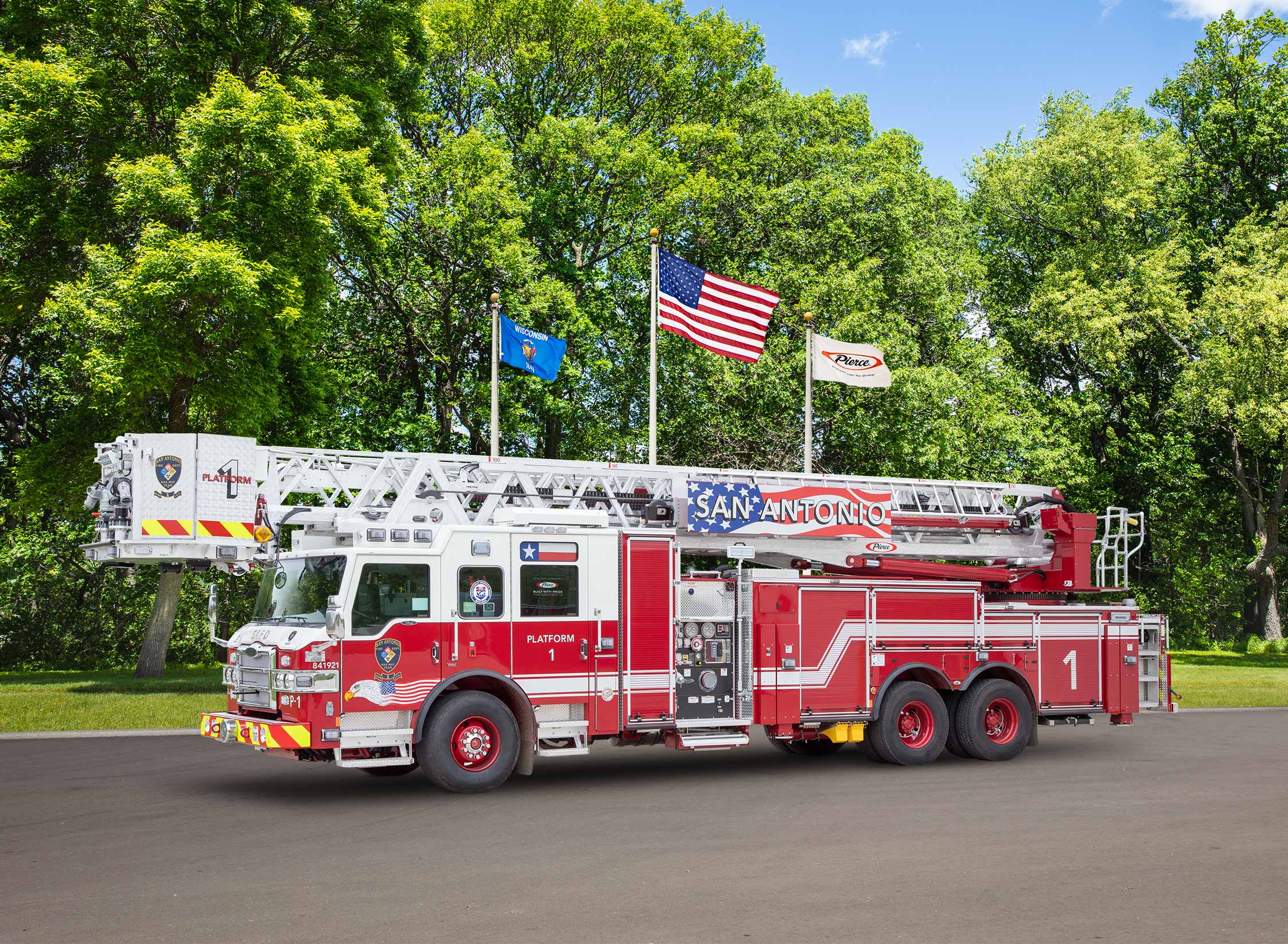

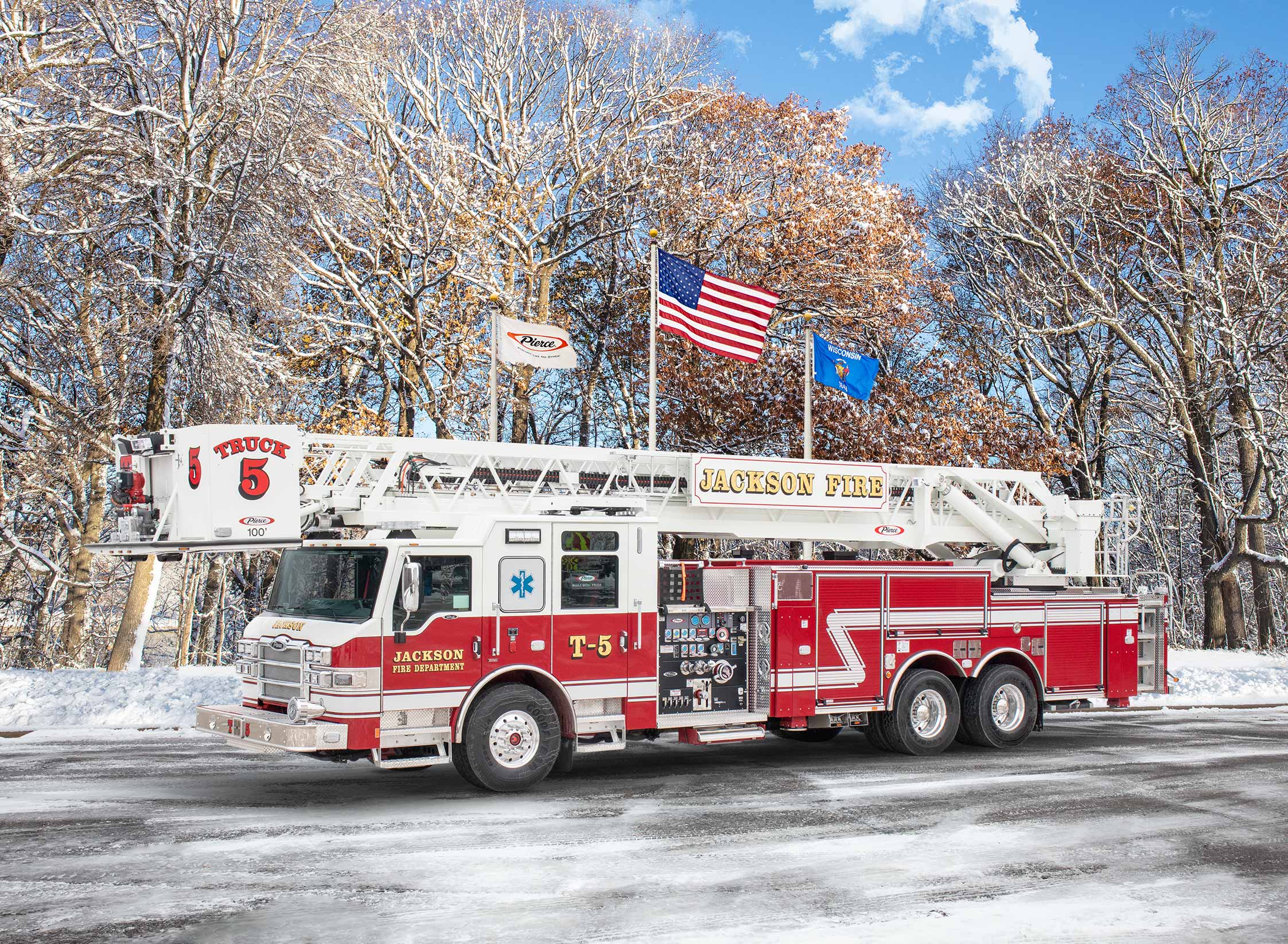

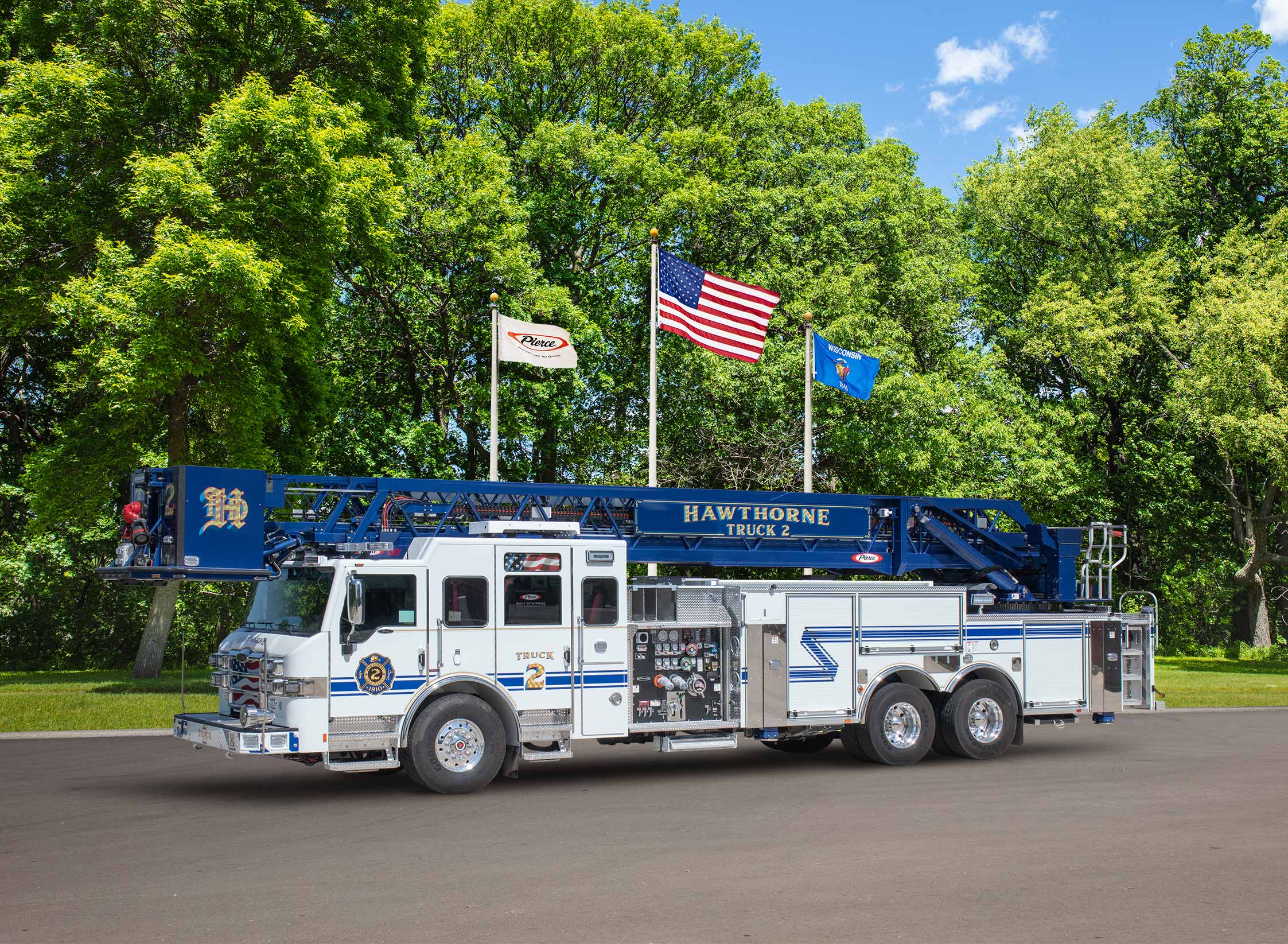

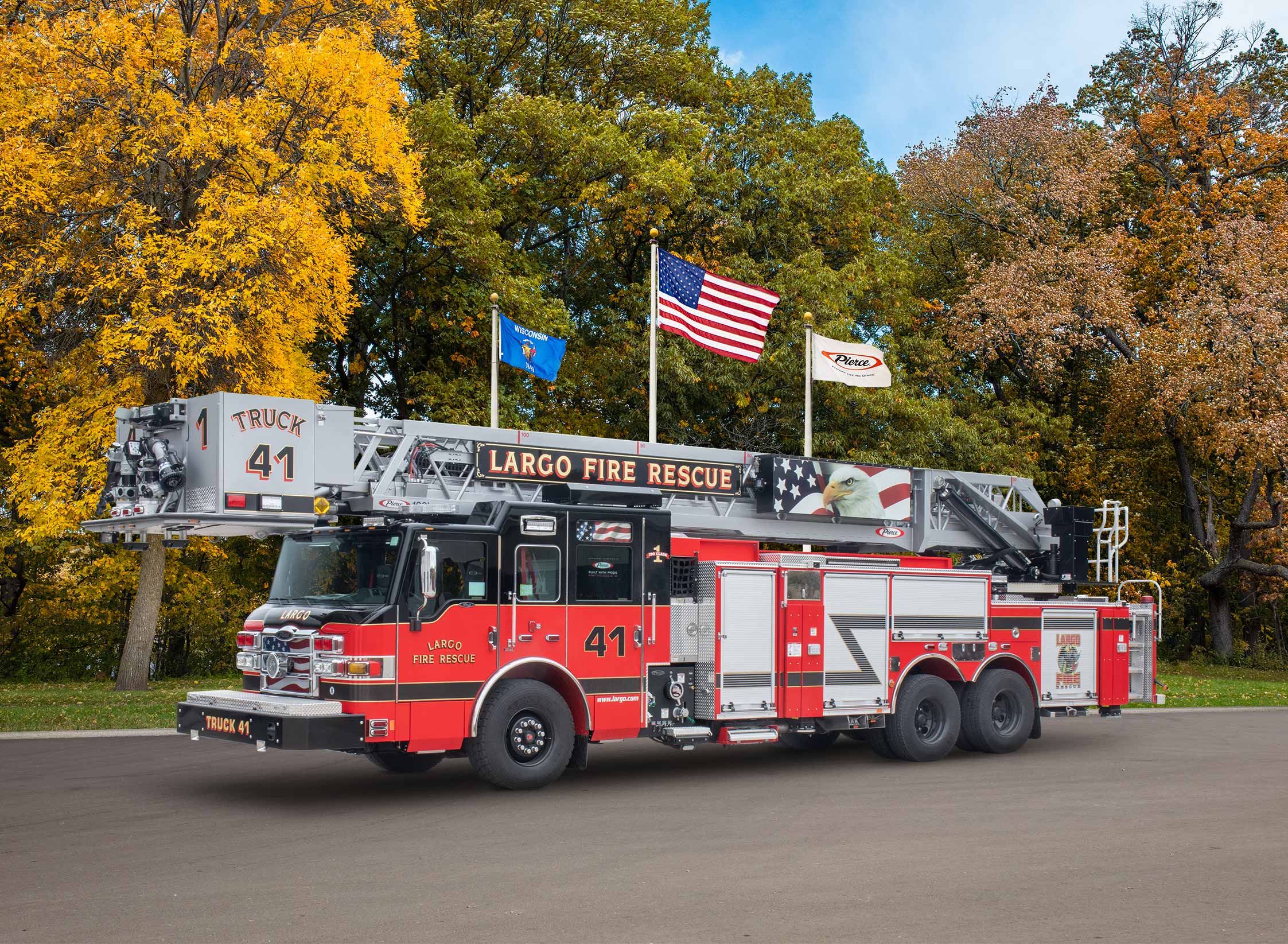

Reserved for those who demand the ultimate in below grade operation and setup adaptability, the Pierce rear-mount 100' heavy-duty aluminum aerial platform lets you access the basket without extending the device. It has an impressive rotation of 235 degrees at -11.5 degrees below ground level. With greater sweep capabilities, precise control from Pierce Command Zone™ advanced electronics, and overall maneuverability, Pierce rear-mount aluminum platforms simplify getting to the scene and back again.
The Pierce 100' heavy-duty aluminum aerial platform basket features an ergonomic design for easier access and operation with angled doors, an 8" walkway on the sides and moveable controls. The basket is available with single or dual monitors and a full complement of Lyfeline™ exclusive accessories mounted on the front side of the basket, thus freeing space inside.
Specifications
Flow Capacity
2,000 gpm
Payload Capacity
Up to 1,000 lb dry / 500 lb wet
Ladder Reach
100' Vertical / 92' Horizontal
Design
Basket | 18 sq ft | Custom Chassis | Enforcer™, Velocity® |
Rear Axle | Tandem | Stabilizer Spread | 16'6" |
Stabilizers | 2 sets of H-style | Structural Ladder Warranty | 20-yr |
Performance
Flow Capacity | 2,000 gpm | Hosebed Capacity | 1,000' of 5" hose |
Ladder Complement | Minimum of 115' | Ladder Reach | 100' Vertical / 92' Horizontal |
Operating Range | -11.5° to 76° | Payload Capacity | Up to 1,000 lb dry / 500 lb wet |
Pump Range | Waterous, Hale, Darley Midship, PTO | Tank | Up to 500 gallons |
Wind or Ice Ratings | Up to 35 mph winds and 1/4" of ice |
Proprietary Options
Electrical |
Command Zone™ |
Foam Systems |
HERCULES™ CAFS Husky™ Industrial Husky™ 12 Husky™ 3 |
Pump |
PUC™ |
Suspension |
TAK-4® Independent Front Suspension |
