100' Heavy-Duty Low Profile Steel Aerial Ladder

Low travel height, no compromise on water capacity, performance or safety.

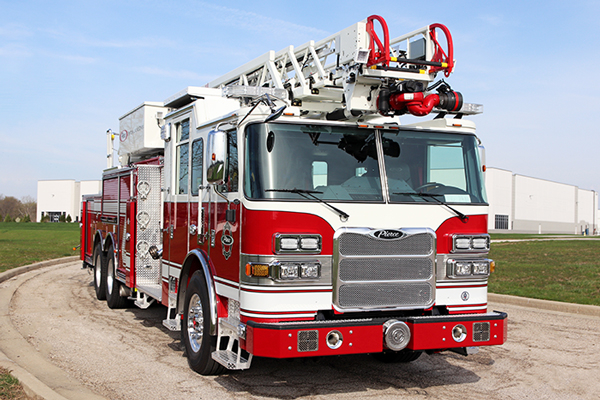

Overview

Pierce 100' heavy-duty low profile steel ladders have an overall height as low as 10' 10" with waterway, and 10' 8" without waterway. The ladder delivers a rated load capacity of up to 750 lb in winds up to 35 mph with a 100 lb allowance of additional firefighting equipment at the ladder tip. They can carry that load while flowing up to 1500 gpm.

Specifications

Flow Capacity

1,500 gpm

Payload Capacity

750 lb dry / 500 lb wet

Ladder Reach

100' Vertical / 93' Horizontal

Design

Custom Chassis	Enforcer™, Velocity®	Rear Axle	Tandem
Stabilizer Spread	Up to 16'	Stabilizers	1 set of H-style & 2 sets of down-jacks
Structural Ladder Warranty	20-yr

Performance

Flow Capacity	1,500 gpm	Hosebed Capacity	1,000' of 5" hose
Ladder Complement	Minimum of 115'	Ladder Reach	100' Vertical / 93' Horizontal
Operating Range	-8° to 78°	Payload Capacity	750 lb dry / 500 lb wet
Pump Range	Waterous, Hale, Darley Midship, PTO	Tank	Up to 750 gallons
Wind or Ice Ratings	Up to 35 mph winds and 1/4" of ice

Proprietary Options

Foam Systems	HERCULES™ CAFS Husky™ Industrial Husky™ 12 Husky™ 3	Pump	PUC™
Suspension	TAK-4® Independent Front Suspension TAK-4® Independent Rear Suspension
