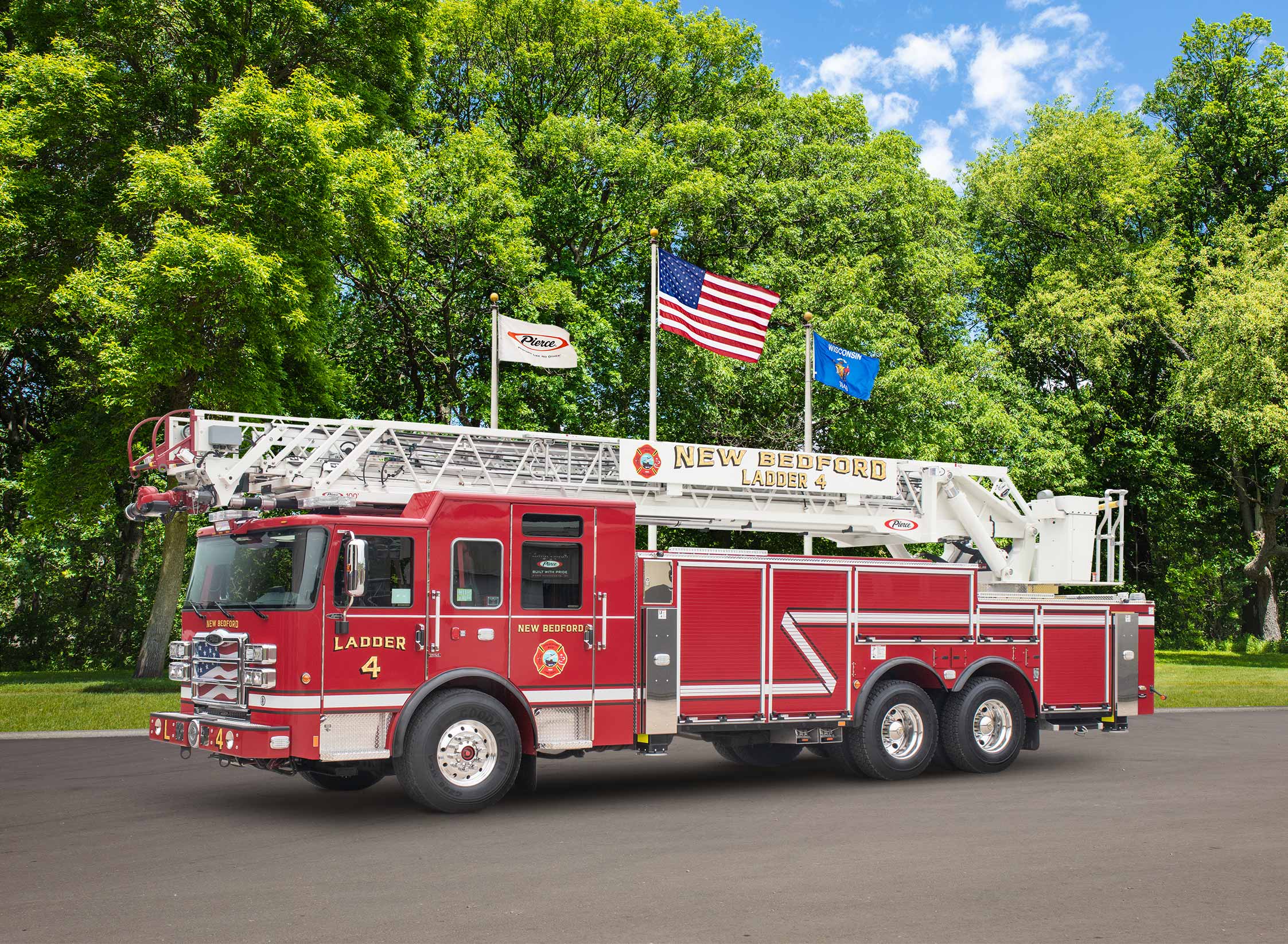

100' Heavy-Duty Steel Aerial Ladder

Pierce 100 Heavy-Duty Steel Aerial Ladder Fire Apparatus-1

Specifications

Flow Capacity

1,000 gpm

Payload Capacity

Up to 750 lb dry / 500 lb wet

Ladder Reach

100' Vertical / 94'1" Horizontal

Design

Custom ChassisEnforcer™, Velocity® Rear AxleTandem
Stabilizer Spread12' Stabilizers2 sets of H-style
Structural Ladder Warranty 20-yr

Performance

Flow Capacity1,000 gpm Hosebed Capacity1,000' of 5" hose
Ladder ComplementMinimum of 115' Ladder Reach100' Vertical / 94'1" Horizontal
Operating Range-8° to 75° Payload CapacityUp to 750 lb dry / 500 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankUp to 750 gallons
Wind or Ice RatingsUp to 50 mph winds and 1/4" of ice

Proprietary Options

Foam Systems HERCULES™ CAFS
Husky™ Industrial
Husky™ 12
Husky™ 3
 Pump PUC™
Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension
