100' Heavy-Duty Low Profile Steel Aerial Ladder

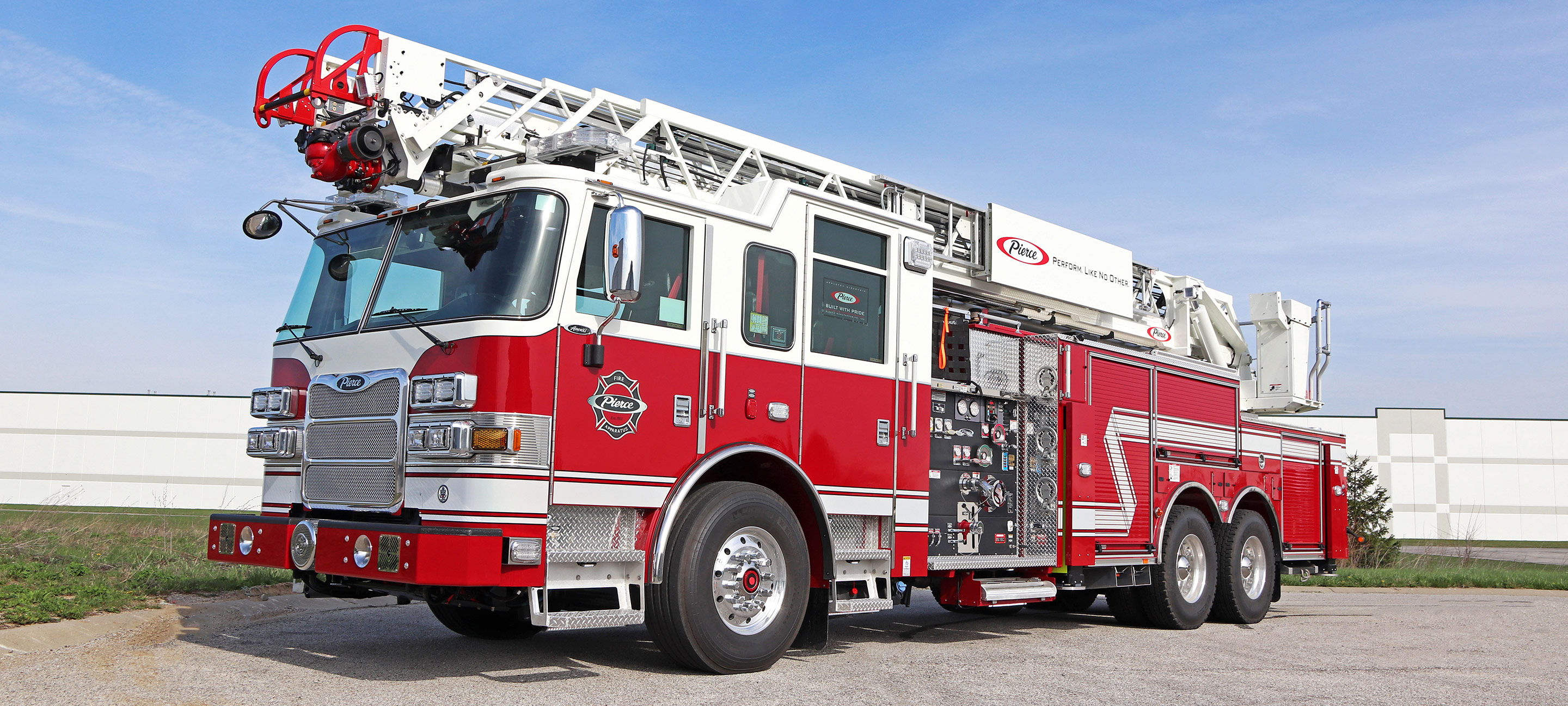

A side view of a red and white 100' Heavy-Duty Low Profile Steel Aerial Ladder truck.

Low travel height, no compromise on water capacity, performance or safety.

AERIALS COMPARISON BROCHURE

Overview

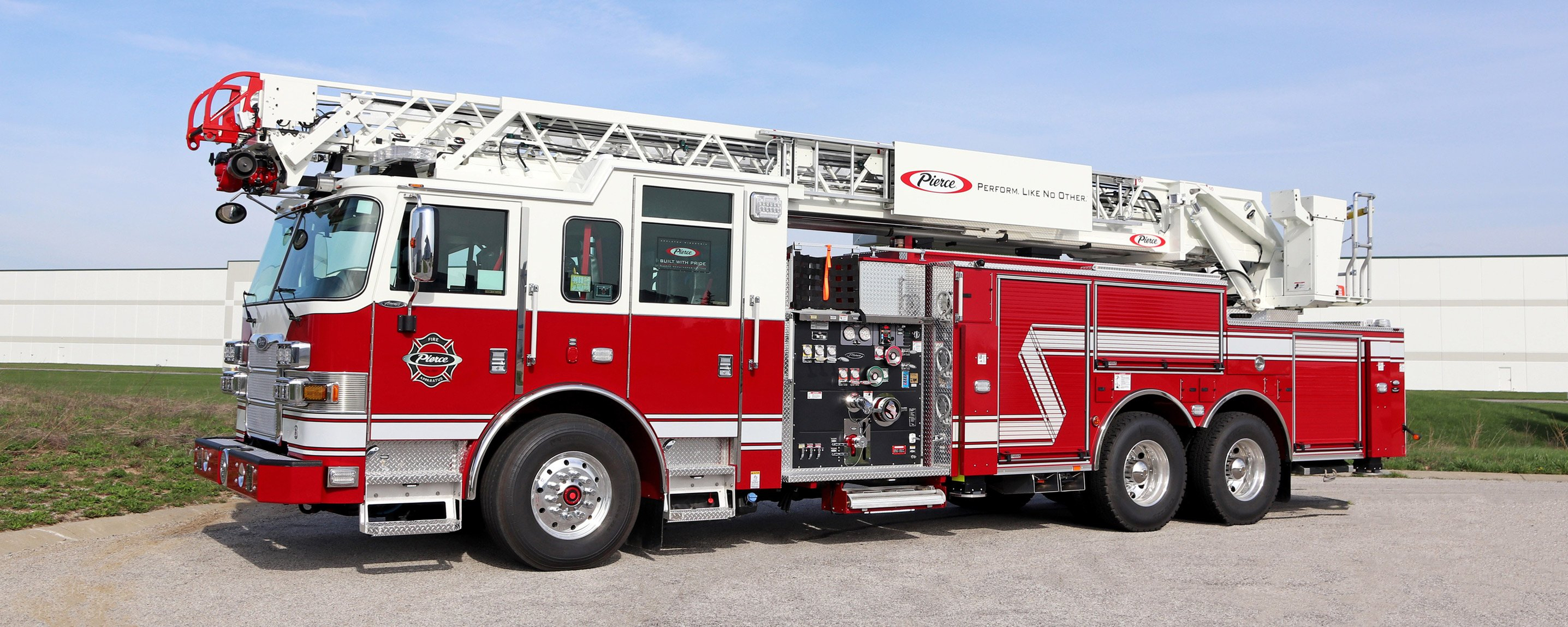

A red and white 100' Heavy-Duty Low Profile Steel Aerial Ladder truck parked on a slight angle.

Pierce 100' heavy-duty low profile steel ladders have an overall height as low as 10' 10" with waterway, and 10' 8" without waterway. The ladder delivers a rated load capacity of up to 750 lb in winds up to 35 mph with a 100 lb allowance of additional firefighting equipment at the ladder tip. They can carry that load while flowing up to 1500 gpm.

Specifications

Flow Capacity

1,500 gpm

Payload Capacity

750 lb dry / 500 lb wet

Ladder Reach

100' Vertical / 93' Horizontal

Design

Custom ChassisEnforcer™, Velocity® Rear AxleTandem
Stabilizer SpreadUp to 16' Stabilizers1 set of H-style & 2 sets of down-jacks
Structural Ladder Warranty 20-yr

Performance

Flow Capacity1,500 gpm Hosebed Capacity1,000' of 5" hose
Ladder ComplementMinimum of 115' Ladder Reach100' Vertical / 93' Horizontal
Operating Range-8° to 78° Payload Capacity750 lb dry / 500 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankUp to 750 gallons
Wind or Ice RatingsUp to 35 mph winds and 1/4" of ice

Proprietary Options

Foam Systems HERCULES™ CAFS
Husky™ Industrial
Husky™ 12
Husky™ 3
 Pump PUC™
Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension

Gallery

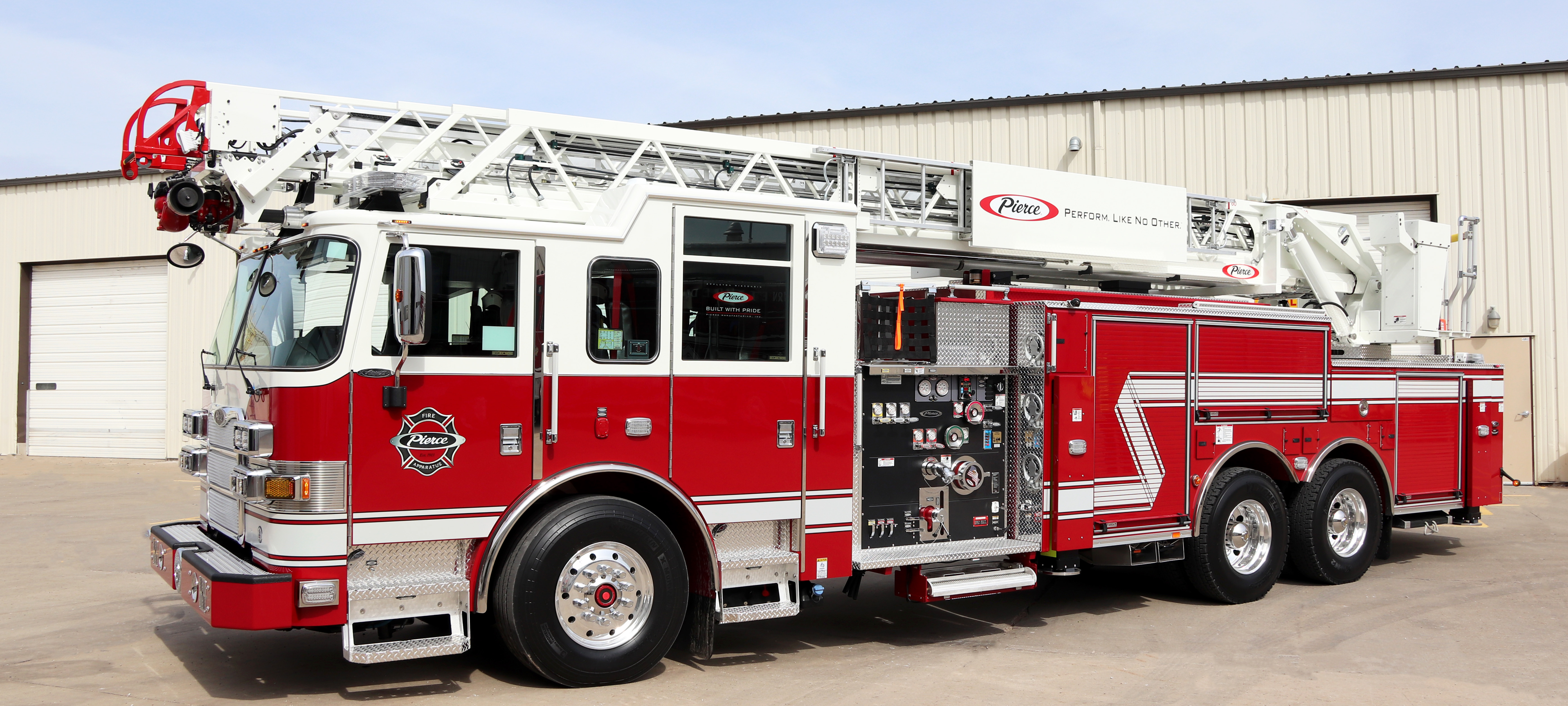

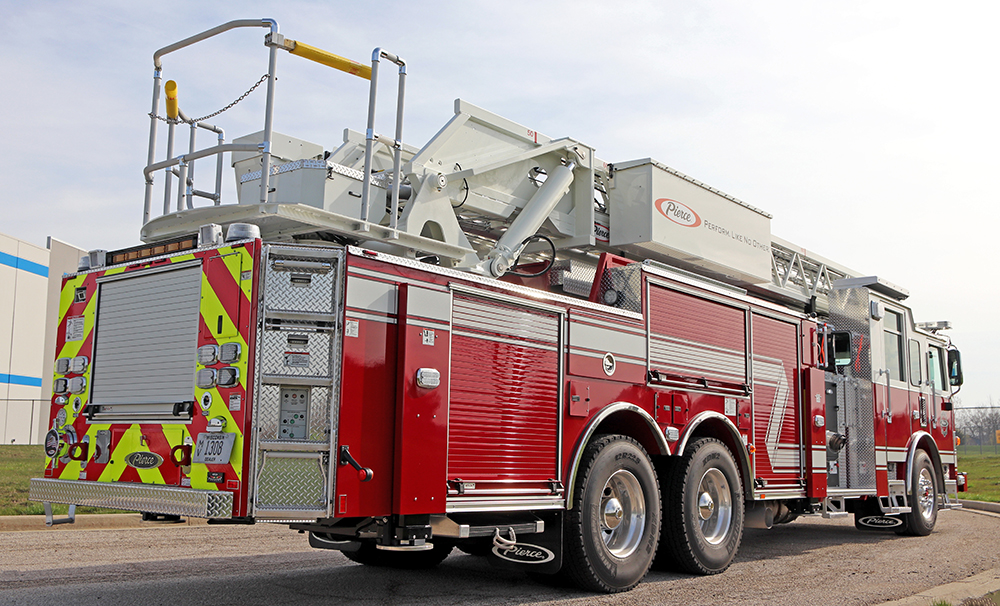

Angled rear view of a red and white Pierce 100' Heavy-Duty Low Profile Steel Aerial Ladder truck.Arrow XT™ 100’ Heavy-Duty Low Profile Steel Aerial Ladder Fire Truck Driver Side Parked In Courtyard-1A 100' Heavy-Duty Low Profile Steel Aerial Ladder truck parked on an angle, showing the drivers side of the truck.View looking across the ladder of a 100' Heavy-Duty Low Profile Steel Aerial Ladder truck.
